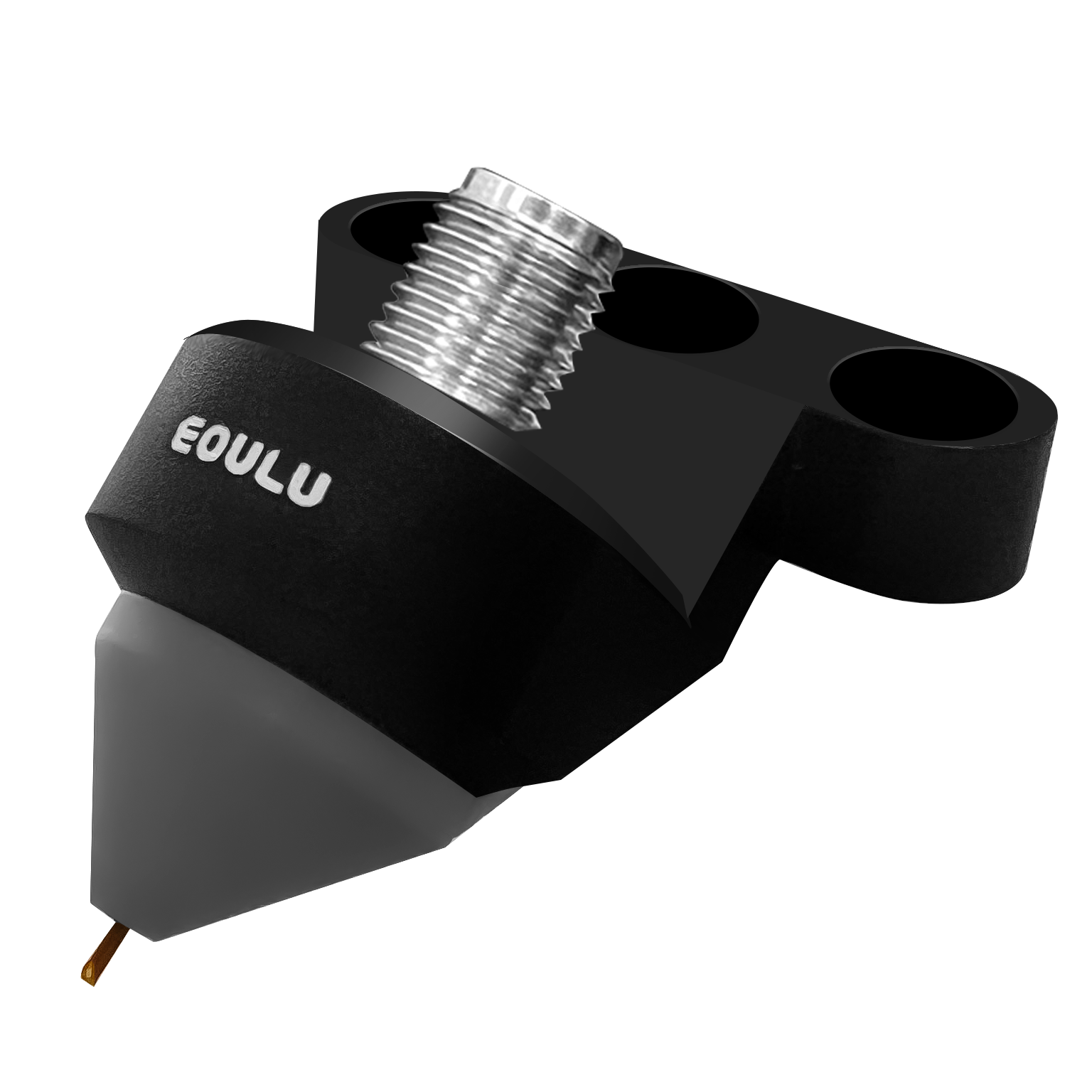

 HF40-GSG150 ● The Sky Series RF probe is an essential tool for wafer-level testing of RF and microwave devices ● Extremely low contact resistance and superior impedance control ● It can maintain signal integrity and stability during wide temperature range testing, and the data repeatability is extremely high ● Sky Series radio frequency probes are delivered quickly and repaired in China, with no need to wait
suitable for mass production testing
suitable for testing uneven interfaces
  Fixed hole position Probe body Probe tip Cable interface
Not all specifications are valid at the same time ** The recommended standard probe pitch is 75 μm ~ 250 μm ** When purchasing and using our RF probe and Calibration Substrate for the first time, it is recommended to purchase on-site installation and calibration training services ** For any problems about hardware construction, cable connection, instrument setting, equipment operations, system calibration, test process and data analysis during the test, visit "Service" at the Eoulu official website, and purchase on-site accompaniment services for hardware and software testing, or purchase the Eoulu future series software to simplify test operations and obtain test results easily and quickly *** Rc on Au **** Power test environment (Watts CW @ 20°C) **** The high-power RF probes are customized products, please contact Eoulu for details ***** The typical probe pitch 50 μm ~ 1250 μm only applies to 40 GHz / 50 GHz / 67 GHz probes, and the typical probe pitch of 110 GHz and above is 50 μm ~ 150 μm ***** 3000 μm (wide pitch) RF probes need to be customized ****** Typical lifetime on Al pads, room temperature ****** The typical lifetime test of RF probe has been verified in the Eoulu laboratory. For details, please refer to the RF probe lifetime verification video in Eoulu’s official website and the Eoulu RF Probe Lifetime Verification Report ******* The test applications listed in the table are recommended by our company. Applications not listed may still be compatible. ******** Probe dimensions are in mm Product parameters are subject to change without prior notice.All product images are subject to the actual products, and Suzhou Eoulu System Integration Co., Ltd. reserves the interpretation right for the content.
|
